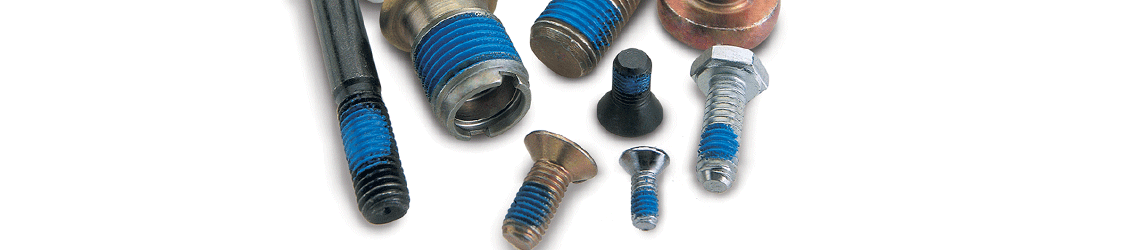

Tuflok®
ADVANTAGES
Reusable several times
Good resistance to impacts and vibration
Adjustable torque to match the application
Adjustable position and width of the patch
Replaces retaining systems using a nut, self-locking nut, lock washer, cotter pin, etc.
Retaining with or without tension in the assembly
No polymerisation: immediate locking and sealing
Good resistance to chemicals: alcohol, petroleum, diesel, oils, kerosene
Tuflok® patches are well known for their cost benefits. They allow the same screw to be reused a number of times. As a result, maintenance and disassembly operations are simplified and cheaper.
TECHNICAL DATA
| Temperature of use | -56°C à +120°C |
| Storage of coated screws | Unlimited |
| Coefficient of friction | 0.3 / 0.4 |
| Deposit over 180° | Low mechanical locking |
| Deposit over 360° | Low mechanical locking + sealing |
| Reusable (disassembly / complete reassembly) | 5 times |
COATING
– The adjustment should be 6g/6H, even after treatment. Lower tolerances may cause the pre-coating product to peel off.

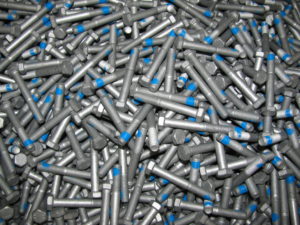

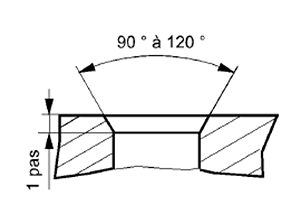

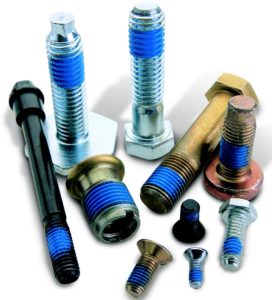

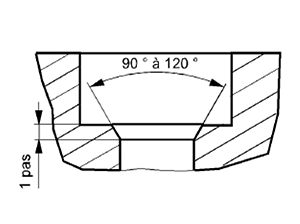

– An entry chamfer of at least 90° is recommended to avoid phenomena like product rise and peeling.
– The surfaces in contact must be compatible (pay attention to heat expansion).
– We remind you that lubricants have a negative influence on product withstand.

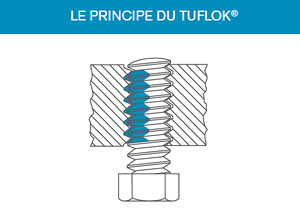

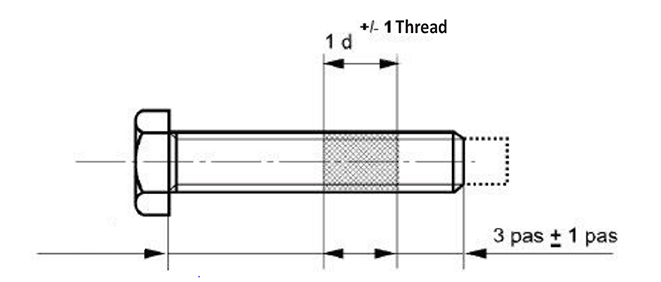

STANDARD POSITION AND LENGTH
Note: When the thread is less than 1.25 in length and the diameter less than 8mm, the pre-coating length may be 0.6 to 0.8 times the diameter.
TORQUE PERFORMANCE TABLE
Reference standard: PSA: B14.12.35 Liaison LFM WITHOUT CLAMP LOAD
| Diameter (mm) | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 14 | 16 | 18 | |
| Thread (mm) | A | 0,5 | 0,7 | 0,8 | 1 | 1 | 1 | 1,25 | 1,25 | 1 | 1,25 | 1,5 | 1,5 | 1,5 |
| B | 1,25 | 1,5 | 1,25 | 1,5 | 2 | 2 | 2,5 | |||||||
| C | 1,5 | 1,75 | ||||||||||||
| Prevailing torque max. (N.m) | A | 0,2 | 0,5 | 1,0 | 1,7 | 2,7 | 4,1 | 5,8 | 8,0 | 11,0 | 14,2 | 22,4 | 33,9 | 48,7 |
| B | 4 | 7,9 | 10,8 | 13,9 | 21,7 | 32,9 | 46,3 | |||||||
| C | 10,6 | 13,6 | ||||||||||||
| Loosening torque min. (N.m) | A | 0,04 | 0,1 | 0,2 | 0,3 | 0,5 | 0,8 | 1,2 | 1,6 | 2,3 | 2,9 | 4,6 | 7,0 | 10,1 |
| B | 0,8 | 1,6 | 2,2 | 2,8 | 4,4 | 6,7 | 9,3 | |||||||
| C | 2,1 | 2,7 | ||||||||||||
RECOMMENDATIONS
The degree of filling with Tuflok® varies depending on the application. The torque values are used to
adjust the machine.
To guarantee improved Tuflok® adherence, avoid any prior part contamination (oil-film forming agent,
etc.).
To guarantee that the product will bond to the part, stainless steels must be passivated.
Tuflok® powder is sprayed onto a preheated part and very precisely aimed. This way the patch will meet its stated specifications.
Film forming agents should be applied after the pre-coating.
ASSEMBLY
The assembly speed must be checked and reduced during the final tightening. A speed of 30 rpm is recommended by the manufacturer.
Assembly is immediate: there is no polymerisation stage.
The Tuflok® patch can be reused (a number of assemblies / reassemblies) but the torque values will be reduced.
DELIVERY – STORAGE
We recommend allowing the product to cure for at least 24 hours after depositing the products and prior to shipping.
There is no limit to how long coated but unassembled products may be stored.
Once the assembly is performed, there is no limit to its service life.
QUALITY

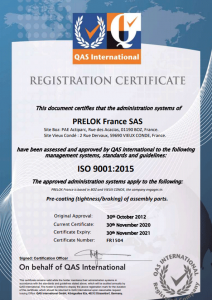

Our facilities are all ISO 9001 certified and our quality systems meet the specialist requirements of the automotive and aeronautics industries.
APPROVALS
Tuflok® has been approved under a number of standards:
Renault 39-02-010
P.S.A B141235
DIN 267-28
IFI124 & 524
BS 7715:1994
GM 6189p
WA 970
JFS 02.01.04
Non-exhaustive list
